CMRI behind the control panels

All Points North MRRC electrical work:

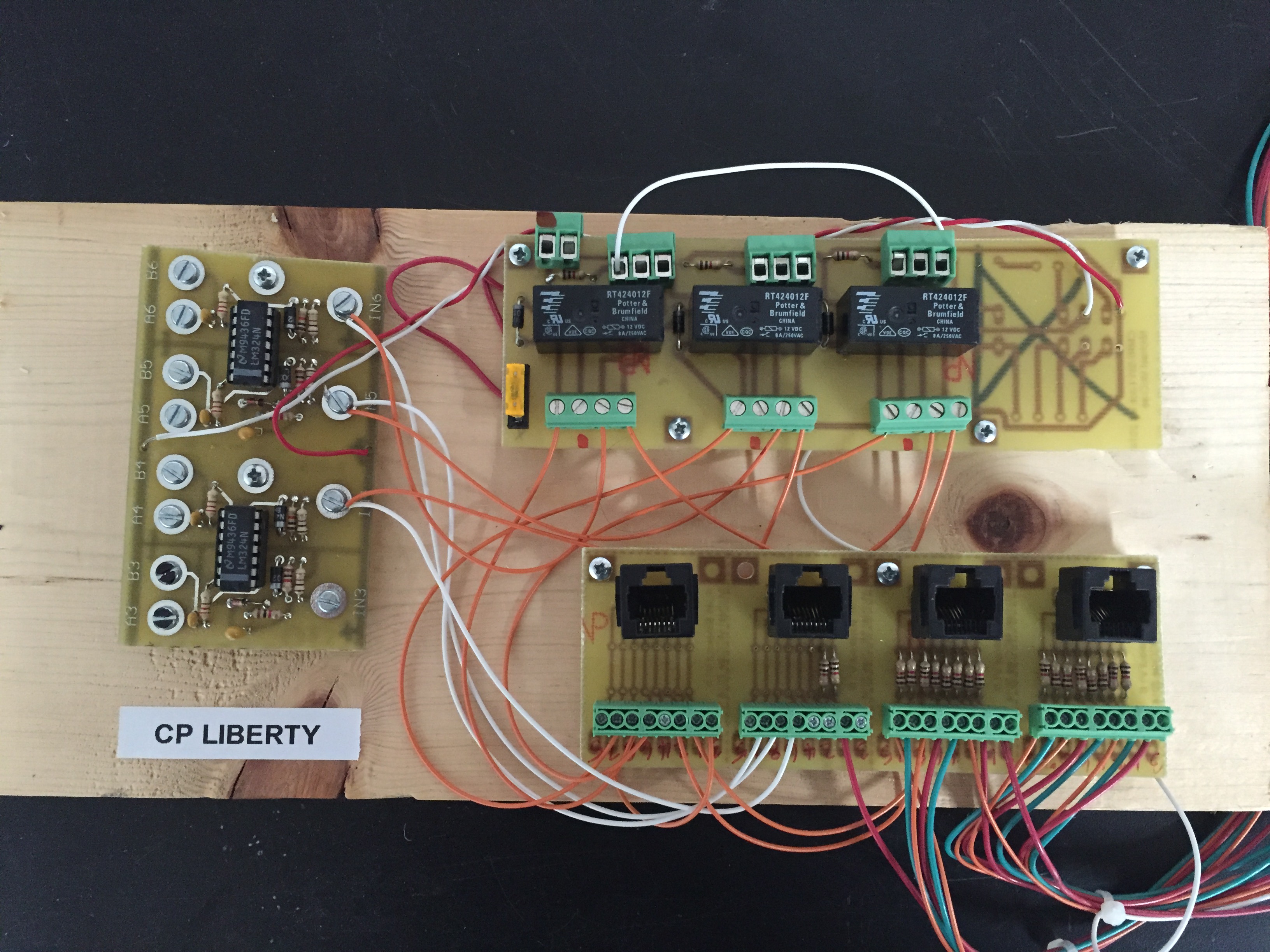

Below is the hook up panel behind the control panel at CP ( Control Point) Liberty

Upper Right:  is the custom switch lock control locking out the control panel to place Mainline turnouts only under Dispatcher control using JMRI

Lower right: is RJ45 jacks that connect CMRI input and output cards for Control of Switch machines, and Signals

Left : is section of SMC-12 card used with CMRI system

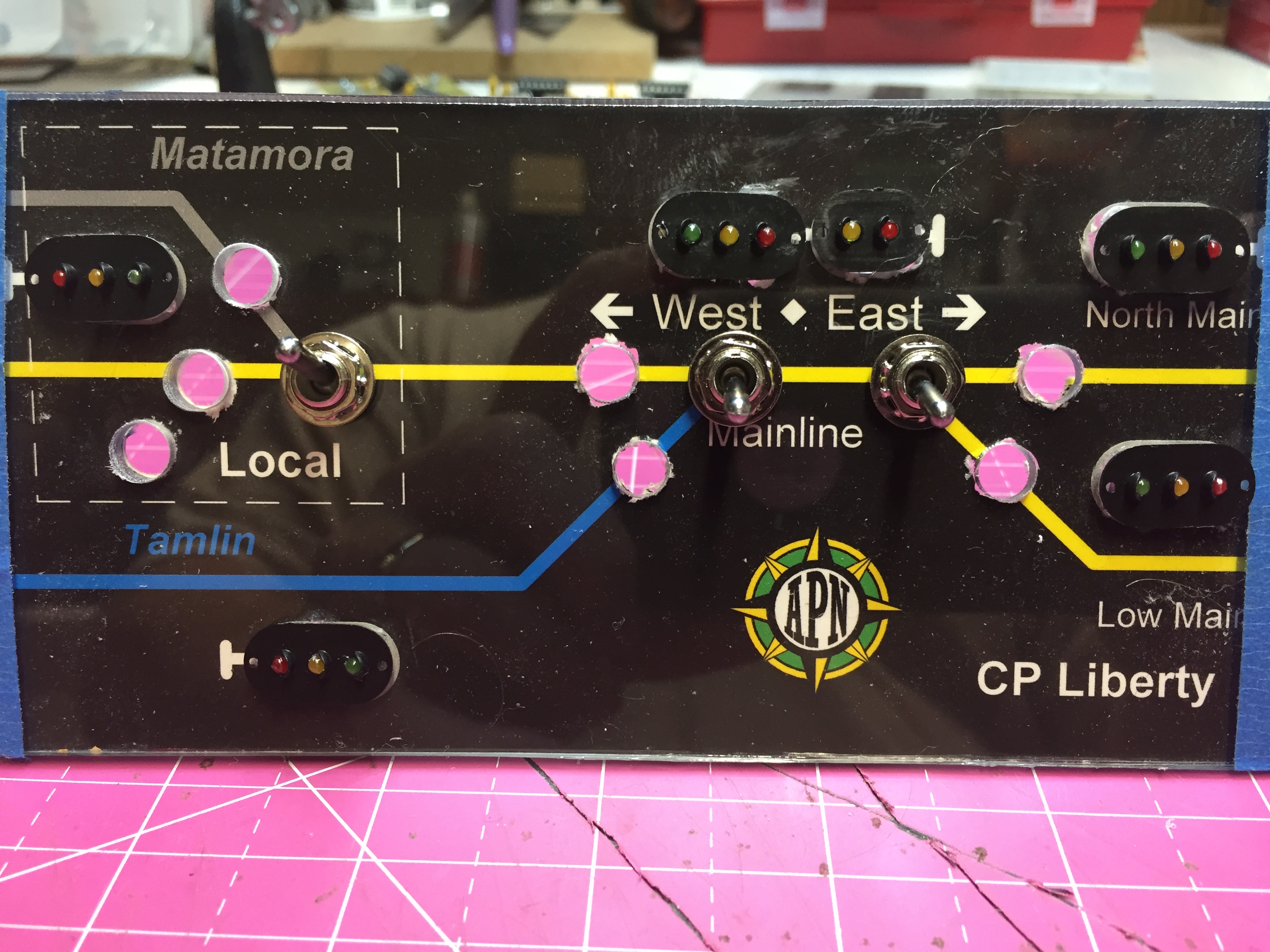

Control panel to be mounted on Fascia:

Still needs indicator LED for routeing and Local Control indication installed

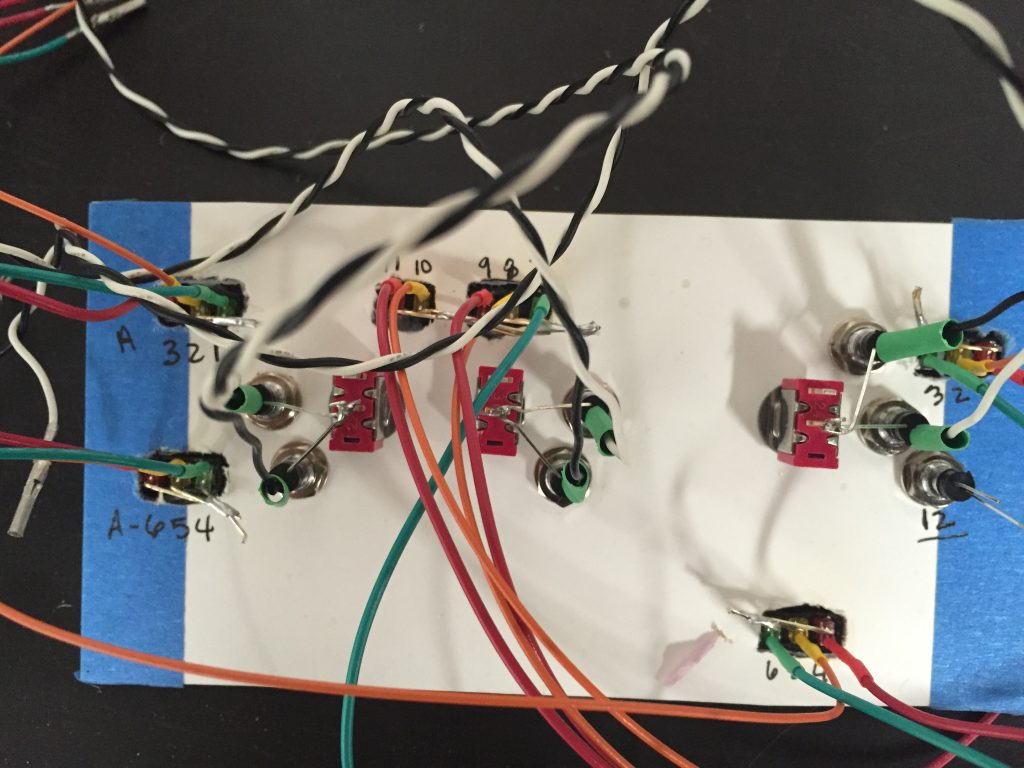

View From backside showing wiring

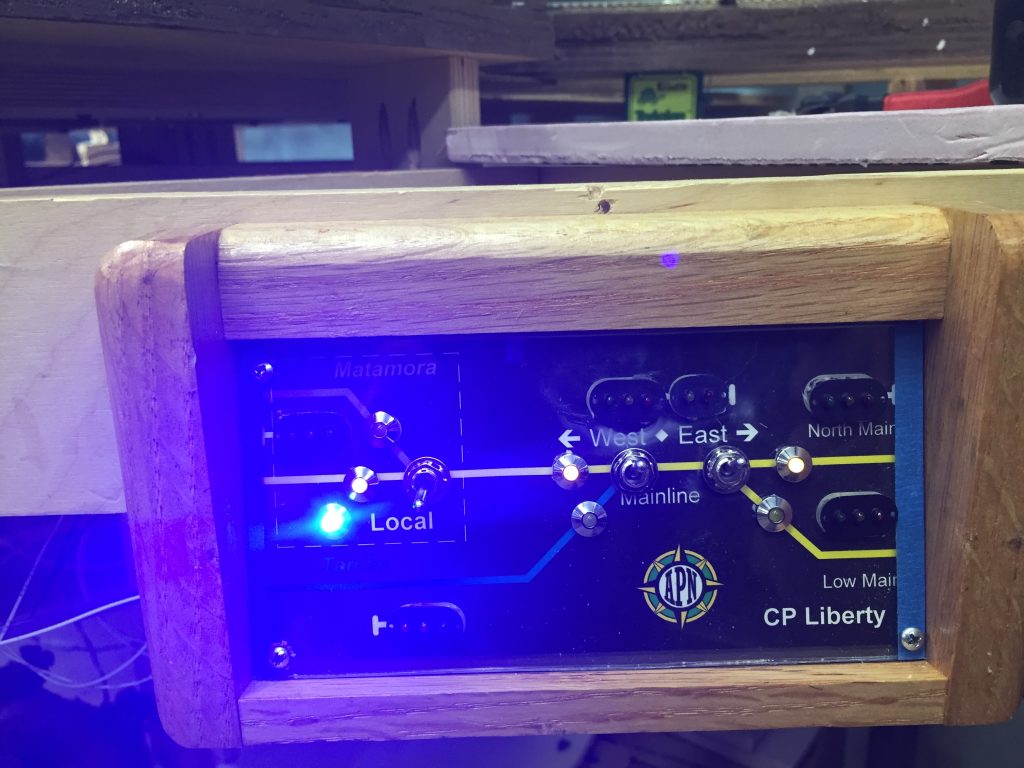

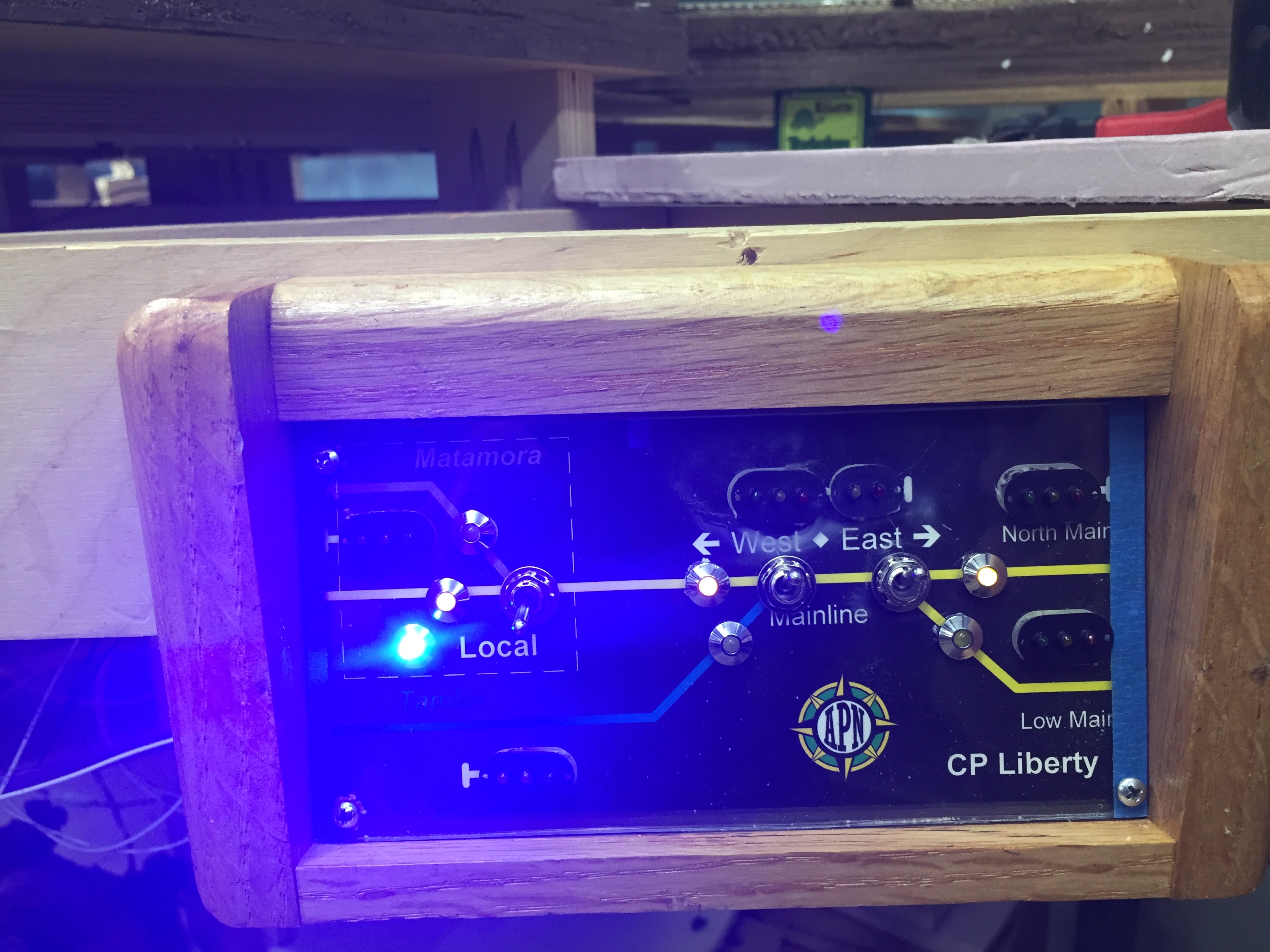

View of installed Panel on Layout:
